Model Airplane Propellers: http://thelukens.net or the engine page or the airplanes page or the airplanes gallery

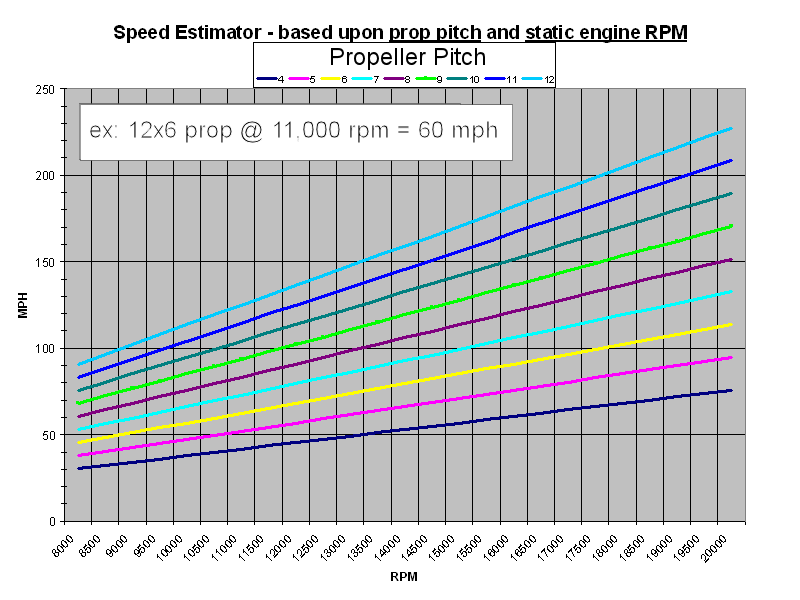

Model Airplane Speed Estimator
APC Propellers sorted by Propeller Type (2007-05-20)
| APC P/N | Nominal Size | Type or Description | Notes | Price |
| LP06340 | 6.3x4 | Combat | 15 | $3.95 |
| LP06537 | 6.5x3.7 | Combat | 15 | $3.95 |
| LP07860 | 7.8X6 | Combat | 36 | $3.95 |
| LP07870 | 7.8X7 | Combat | 36 | $3.95 |
| LP08850 | 8.75X5 | Combat | 36 | $3.95 |
| LP09330 | 9.3x3 | Combat | $2.29 | |
| LP09030 | 9x3 | Combat | $2.29 | |
| LP09030N | 9x3N | Combat | narrow | $3.95 |
| LP04240 | 4.2X4 | Control-Line | 1/2A | $1.83 |
| LP08060 | 8X6 | Control-Line | $2.06 | |
| LP09060N | 9X6N | Control-Line | Racing, narrow | $3.95 |
| LP11540 | 11.5X4 | Control-Line | $3.97 | |
| LP11560 | 11.5X6 | Control-Line | $3.42 | |
| LP12338 | 12.25X3.75 | Control-Line | $4.49 | |
| LP12338 | 12.25X3.75 | Control-Line | $4.49 | |
| LP05050F | 5X5F | Electric - folding | Requires electric folding hub | $3.50 |
| LP06030F | 6x3F | Electric - folding | Requires electric folding hub | $3.50 |
| LP07040F | 7X4F | Electric - folding | Requires electric folding hub | $4.00 |
| LP08040F | 8X4F | Electric - folding | Requires electric folding hub | $4.25 |
| LP09050F | 9X5F | Electric - folding | Requires electric folding hub | $4.75 |
| LP10060F | 10X6F | Electric - folding | Requires electric folding hub | $5.25 |
| LP11080F | 11x8F | Electric - folding | Requires electric folding hub | $5.50 |
| LP12085F | 12x8.5F | Electric - folding | Requires electric folding hub | $6.50 |
| LP13010F | 13x10F | Electric - folding | Requires electric folding hub | $7.50 |
| LP13070F | 13x7F | Electric - folding | Requires electric folding hub | $7.50 |
| LP14010F | 14x10F | Electric - folding | Requires electric folding hub | $8.50 |
| LP15012F | 15x12F | Electric - folding | Requires electric folding hub | $9.50 |
| LPFH2 | 35mm | Electric folding - Hub | Hub for 30mm Spinner | $5.00 |
| LPFH3 | 45mm | Electric folding - Hub | Hub for 40mm Spinner | $5.00 |
| LPFH4 | 50mm | Electric folding - Hub | Hub for 45mm Spinner | $5.00 |
| LPFH5 | 55mm | Electric folding - Hub | Hub for 50mm Spinner | $5.00 |
| LP05520 | 5.5x2 | Free Flight | 1/2A | $1.83 |
| LP05525 | 5.5x2.5 | Free Flight | 1/2A | $1.83 |
| LP05730 | 5.7x3 | Free Flight | 1/2A | $1.83 |
| LP05030 | 5X3 | Free Flight | 1/2A | $3.95 |
| LP06529 | 6.5x2.9 | Free Flight | 10 | $3.95 |
| LP06020 | 6x2 | Free Flight | 1/2A | $1.83 |
| LP07840 | 7.8X4 | Free Flight | 21-25 | $3.95 |
| LP07030 | 7X3 | Free Flight | 15 | $1.83 |
| LP07040 | 7X4 | Free Flight | 15 | $1.83 |
| LP08040 | 8X4 | Free Flight | 21-25 | $2.06 |
| LP09545 | 9.5X4.5 | Free Flight | 40 | $2.63 |
| LP09040 | 9X4 | Free Flight | 29 | $2.29 |
| LP09050 | 9X5 | Free Flight | 29 | $2.29 |
| LP10545 | 10.5X4.5 | Free Flight | 40 | $3.95 |
| LP17060 | 17x6 | IMAC Aerobatic | $16.95 | |
| LP18080W | 18x8W | IMAC Aerobatic | Wide | $22.00 |
| LP19080W | 19x8W | IMAC Aerobatic | Wide | $25.00 |
| LP20010W | 20x10W | IMAC Aerobatic | Wide | $25.00 |
| LP20080W | 20x8W | IMAC Aerobatic | Wide | $25.00 |
| LP22010W | 22x10W | IMAC Aerobatic | Wide | $31.00 |
| LP11010 | 11X10 | Pattern | 60 | $7.95 |
| LP11011 | 11X11 | Pattern | 60 | $7.95 |
| LP11012 | 11X12 | Pattern | 60 | $7.95 |
| LP12510 | 12.5X10 | Pattern | 60 | $7.95 |
| LP12511 | 12.5X11 | Pattern | 60 | $7.95 |
| LP12512 | 12.5X12 | Pattern | 60 | $7.95 |
| LP12010 | 12X10 | Pattern | 60 | $7.95 |
| LP1210W | 12X10W | Pattern | 60 | $7.95 |
| LP12011 | 12X11 | Pattern | 60 | $7.95 |
| LP1211N | 12X11N | Pattern | 60, narrow | $7.95 |
| LP12012 | 12X12 | Pattern | 60 | $7.95 |
| LP12125 | 12X12.5 | Pattern | 60 | $7.95 |
| LP12014 | 12X14 | Pattern | 60 | $7.95 |
| LP12090 | 12X9 | Pattern | 60 | $7.95 |
| LP13510 | 13.5X10 | Pattern | 60 | $12.95 |
| LP13590 | 13.5X9 | Pattern | 60 | $12.95 |
| LP13010 | 13X10 | Pattern | 60 | $7.95 |
| LP13011 | 13X11 | Pattern | 60 | $7.95 |
| LP1312N | 13X12N | Pattern | YS 91, narrow | $7.95 |
| LP1313N | 13X13N | Pattern | 120, narrow | $7.95 |
| LP13090 | 13X9 | Pattern | 60 | $7.95 |
| LP144105 | 14.4X10.5 | Pattern | 120 | $12.95 |
| LP14413 | 14.4X13 | Pattern | 120 | $12.95 |
| LP14011 | 14X11 | Pattern | YS 91 | $12.95 |
| LP14012 | 14X12 | Pattern | 120 | $12.95 |
| LP14012N | 14X12N | Pattern | 120, narrow | $12.95 |
| LP14013 | 14X13 | Pattern | 120 | $12.95 |
| LP14014 | 14X14 | Pattern | 120 | $12.95 |
| LP15512 | 15.5X12 | Pattern | $12.95 | |
| LP415512 | 15.5X12 | Pattern | 140 - 4 BLADE | $19.95 |
| LP15512W | 15.5x12W | Pattern | Wide | $12.95 |
| LP15010 | 15X10 | Pattern | 120 | $12.95 |
| LP15011 | 15X11 | Pattern | 120 | $12.95 |
| LP15012 | 15X12 | Pattern | 120 | $12.95 |
| LP15012W | 15X12W | Pattern | 120 | $12.95 |
| LP15013 | 15X13 | Pattern | 120 | $12.95 |
| LP15080 | 15X8 | Pattern | 120 | $12.95 |
| LP16513 | 16.5X13 | Pattern | 140 | $12.95 |
| LP16013W | 16.5x13W | Pattern | Wide | $12.95 |
| LP16010 | 16X10 | Pattern | $12.95 | |
| LP16011 | 16X11 | Pattern | $12.95 | |
| LP16012 | 16X12 | Pattern | $12.95 | |
| LP16013 | 16X13 | Pattern | $12.95 | |
| LP16014 | 16X14 | Pattern | 140 | $12.95 |
| LP16016 | 16X16 | Pattern | 140 | $12.95 |
| LP16080 | 16X8 | Pattern | $12.95 | |
| LP17010 | 17x10 | Pattern | $16.95 | |
| LP17010N | 17X10N | Pattern | 140, narrow | $16.95 |
| LP17012 | 17X12 | Pattern | $16.95 | |
| LP170125N | 17X12.5N | Pattern | 140, narrow | $16.95 |
| LP17012N | 17X12N | Pattern | 140, narrow | $16.95 |
| LP17013 | 17X13 | Pattern | 140 | $16.95 |
| LP17080 | 17x8 | Pattern | $16.95 | |
| LP17080N | 17X8N | Pattern | narrow | $16.95 |
| LP18111 | 18.1x11 | Pattern | $22.00 | |
| LP18595 | 18.5x9.5 | Pattern | $25.00 | |
| LP18010 | 18X10 | Pattern | $22.00 | |
| LP18012 | 18X12 | Pattern | $22.00 | |
| LP18080 | 18X8 | Pattern | $22.00 | |
| LP20010 | 20X10 | Pattern | $25.00 | |
| LP20012 | 20X12 | Pattern | $25.00 | |
| LP20080 | 20X8 | Pattern | $25.00 | |
| LP22010 | 22x10 | Pattern | Giant_Scale_Formula | $31.00 |
| LP22080 | 22x8 | Pattern | Giant_Scale_Formula | $31.00 |
| LPH3A | 17/19 in.hub Three Blad | Pattern - Hub | for 3-blade 17 & 19 in. blades | $54.00 |
| LPH2A | 18 in. hub Two Blade | Pattern - Hub | for 2-blade Comp Sys | $30.00 |
| LPH3B | 20/21 in.hub Three Blad | Pattern - Hub | for 3-blade 20 & 21 in. blades | $66.00 |
| LPH3C | 22 in. hub Three Blade | Pattern - Hub | for 3-blade 22 in. blades | $78.00 |
| LPH2C | 22 in. hub Two Blade | Pattern - Hub | for 2-blade Comp Sys | $40.00 |
| LPH3D | 24 in. hub Three Blad | Pattern - Hub | for 3-blade 24 in. blades | $108.00 |
| LPH2D | 24 in. hub Two Blade | Pattern - Hub | for 2-blade Comp Sys | $60.00 |
| LP3-157513 | 15.75X13 Three Blade | Pattern w/ Hub | 3-Blade | $24.95 |
| LP3-15135 | 15x13.5 Three Blade | Pattern w/ Hub | 3 blade | $24.95 |
| LP2B20014C | 20X14 Carbon Fiber | Pattern w/ Hub | Carbon-Fiber | $100.00 |
| LP20015C | 20x15 Carbon Fiber | Pattern w/ Hub | Carbon-Fiber | $80.00 |
| LP2C22012C | 22x12 Carbon Fiber | Pattern w/ Hub | Carbon-Fiber | $124.00 |
| LP3A17010 | 17X10 Three Blade | Pattern w/ Hub | req. Comp Sys Hub | $33.00 |
| LP3A18010 | 18X10 Three Blade | Pattern w/ Hub | Comp Sys Hub | $33.00 |
| LP2A18010 | 18X10 Two Blade | Pattern w/ Hub | Comp Sys Hub | $22.00 |
| LP2A18012 | 18X12 Two Blade | Pattern w/ Hub | Comp Sys Hub | $22.00 |
| LP2A18014 | 18X14 Two Blade | Pattern w/ Hub | Comp Sys Hub | $22.00 |
| LP2A18016 | 18X16 Two Blade | Pattern w/ Hub | Comp Sys Hub | $22.00 |
| LP2A18018 | 18X18 Two Blade | Pattern w/ Hub | Comp Sys Hub | $22.00 |
| LP2A18080 | 18X8 Two Blade | Pattern w/ Hub | Comp Sys Hub | $22.00 |
| LP3A19011 | 19X11 Three Blade | Pattern w/ Hub | Comp Sys Hub | $33.00 |
| LP3B20010 | 20x10 Three Blade | Pattern w/ Hub | Comp Sys Hub | $37.00 |
| LP2B20010 | 20X10 Two Blade | Pattern w/ Hub | Comp Sys Hub | $25.00 |
| LP3B20012 | 20x12 Three Blade | Pattern w/ Hub | Comp Sys Hub | $37.00 |
| LP2B20012 | 20X12 Two Blade | Pattern w/ Hub | Comp Sys Hub | $25.00 |
| LP3B20014 | 20x14 Three Blade | Pattern w/ Hub | Comp Sys Hub | $37.00 |
| LP2B20014 | 20X14 Two Blade | Pattern w/ Hub | Comp Sys Hub | $25.00 |
| LP2B20080 | 20x8 Two Blade | Pattern w/ Hub | Comp Sys Hub | $25.00 |
| LP3B21010 | 21x10 Three Blade | Pattern w/ Hub | Comp Sys Hub | $37.00 |
| LP3B21012 | 21x12 Three Blade | Pattern w/ Hub | Comp Sys Hub | $37.00 |
| LP2B21012 | 21X12 Two Blade | Pattern w/ Hub | Comp Sys Hub | $25.00 |
| LP3C22010 | 22x10 Three Blade | Pattern w/ Hub | Comp Sys Hub | $45.00 |
| LP2C22010 | 22x10 Two Blade | Pattern w/ Hub | Comp Sys Hub | $31.00 |
| LP3C22012 | 22x12 Three Blade | Pattern w/ Hub | Comp Sys Hub | $45.00 |
| LP2C22012 | 22x12 Two Blade | Pattern w/ Hub | Comp Sys Hub | $31.00 |
| LP3C22014 | 22x14 Three Blade | Pattern w/ Hub | Comp Sys Hub | $45.00 |
| LP2C22014 | 22x14 Two Blade | Pattern w/ Hub | Comp Sys Hub | $31.00 |
| LP3C22016 | 22x16 Three Blade | Pattern w/ Hub | Comp Sys Hub | $45.00 |
| LP2C22016 | 22x16 Two Blade | Pattern w/ Hub | Comp Sys Hub | $31.00 |
| LP2C22018 | 22x18 Two Blade | Pattern w/ Hub | Comp Sys Hub | $31.00 |
| LP2C22020 | 22x20 Two Blade | Pattern w/ Hub | Comp Sys Hub | $31.00 |
| LP2C22080 | 22x8 Two Blade | Pattern w/ Hub | Comp Sys Hub | $31.00 |
| LP2D23018 | 23x18 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP2D23020 | 23x20 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP2D23022 | 23x22 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP2D23024 | 23x24 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP3D24010 | 24x10 Three Blade | Pattern w/ Hub | Comp Sys Hub | $55.00 |
| LP2D24010 | 24x10 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP3D24012 | 24x12 Three Blade | Pattern w/ Hub | Comp Sys Hub | $55.00 |
| LP2D24012 | 24x12 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP3D24014 | 24x14 Three Blade | Pattern w/ Hub | Comp Sys Hub | $55.00 |
| LP2D24014 | 24x14 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP3D24016 | 24x16 Three Blade | Pattern w/ Hub | Comp Sys Hub | $55.00 |
| LP2D24016 | 24x16 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP2D24018 | 24x18 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP2D24020 | 24x20 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP2D24022 | 24x22 Two Blade | Pattern w/ Hub | Comp Sys Hub | $38.00 |
| LP04535 | 4.5 X 3.5 | Pylon | 1/2A, Combat | $3.95 |
| LP04540 | 4.5x4 | Pylon | 1/2A, Combat | $3.95 |
| LP04630 | 4.6X3 | Pylon | 1/2A, Combat | $3.95 |
| LP04754 | 4.75X4 | Pylon | 1/2A, Combat | $3.95 |
| LP06550 | 6.5x5.0 | Pylon | 10-15 | $3.95 |
| LP06555 | 6.5x5.5 | Pylon | 10-15 | $3.95 |
| LP06560 | 6.5x6.0 | Pylon | 10-15 | $3.95 |
| LP06565 | 6.5x6.5 | Pylon | 10-15 | $3.95 |
| LP08555 | 8.5X5.5 | Pylon | 25 | $3.95 |
| LP08565 | 8.5X6.5 | Pylon | 40 | $3.95 |
| LP08570 | 8.5X7.0 | Pylon | 40 | $3.95 |
| LP08575 | 8.5X7.5 | Pylon | 40 | $3.95 |
| LP08870 | 8.75X7.0 | Pylon | 40 | $3.95 |
| LP08875 | 8.75X7.5 | Pylon | 40 | $3.95 |
| LP08875NN | 8.75X7.5NN | Pylon | 40, narrow, nylon | $3.95 |
| LP08875W | 8.75X7.5W | Pylon | 40 | $3.95 |
| LP088775 | 8.75X7.75 | Pylon | 40 | $3.95 |
| LP088775W | 8.75X7.75W | Pylon | 40 | $3.95 |
| LP08880NN | 8.75X8.0NN | Pylon | 40, narrow, nylon | $3.95 |
| LP08880W | 8.75X8.0W | Pylon | 40 | $3.95 |
| LP08889W | 8.75X9.0W | Pylon | 40 | $3.95 |
| LP08895NN | 8.75X9.5NN | Pylon | 40, narrow, nylon | $3.95 |
| LP88850 | 8.8X8.5 | Pylon | 40 | $3.95 |
| LP88875 | 8.8X8.75 | Pylon | 40 | $3.95 |
| LP88900 | 8.8X9.0 | Pylon | 40 | $3.95 |
| LP88925 | 8.8X9.25 | Pylon | 40 | $3.95 |
| LP09350 | 9.25X5.0 | Pylon | 25 | $3.95 |
| LP09355 | 9.25X5.5 | Pylon | 25 | $3.95 |
| LP09360 | 9.25X6.0 | Pylon | 25 | $3.95 |
| LP09575 | 9.5X7.5N | Pylon | 40 | $3.95 |
| LP09570 | 9.5X7N | Pylon | 40 | $3.95 |
| LP09580 | 9.5X8N | Pylon | 40 | $3.95 |
| LP09065 | 9X6.5 | Pylon | 40 | $3.95 |
| LP09075 | 9X7.5 | Pylon | 40 | $3.95 |
| LP09085 | 9X8.5 | Pylon | 40 | $3.95 |
| LP07475C | 7.4x7.5C | Racing Prop | Carbon-Fiber | $10.00 |
| LP07476C | 7.4x7.6C | Racing Prop | Carbon-Fiber | $10.00 |
| LP07477C | 7.4x7.7C | Racing Prop | Carbon-Fiber | $10.00 |
| LP07478C | 7.4x7.8 | Racing Prop | Carbon-Fiber | $10.00 |
| LP074781C | 7.4x7.81C | Racing Prop | Carbon-Fiber | $10.00 |
| LP07480C | 7.4X8 | Racing Prop | Carbon-Fiber | $10.00 |
| LP07481C | 7.4x8.1 | Racing Prop | Carbon-Fiber | $10.00 |
| LP74825C | 7.4x8.25 | Racing Prop | Carbon-Fiber | $10.00 |
| LP07840C | 7.8X4 | Racing Prop | Carbon-Fiber | $18.00 |
| LP07860C | 7.8X6 | Racing Prop | Carbon-Fiber | $18.00 |
| LP07870C | 7.8X7 | Racing Prop | Carbon-Fiber | $18.00 |
| LP07060W | 7X6W | Racing Prop | 20 | $3.95 |
| LP07038WSF | 7X3.8WSF | Slow_Flyer | $2.13 | |
| LP07040SF | 7x4SF | Slow_Flyer | $2.13 | |
| LP07050SF | 7x5SF | Slow_Flyer | $2.13 | |
| LP07060SF | 7x6SF | Slow_Flyer | $2.13 | |
| LP08038 | 8X3.8 | Slow_Flyer | $2.36 | |
| LP08060SF | 8X6 | Slow_Flyer | $2.36 | |
| LP09038 | 9X3.8 | Slow_Flyer | $2.59 | |
| LP09047 | 9X4.7 | Slow_Flyer | $2.59 | |
| LP09060SF | 9x6 | Slow_Flyer | $2.59 | |
| LP09075SF | 9x7.5SF | Slow_Flyer | $2.59 | |
| LP10038SF | 10x3.8SF | Slow_Flyer | $2.93 | |
| LP10047 | 10X4.7 | Slow_Flyer | $2.93 | |
| LP10070SF | 10x7 | Slow_Flyer | $2.93 | |
| LP11038SF | 11x3.8SF | Slow_Flyer | $3.16 | |
| LP11047 | 11X4.7 | Slow_Flyer | $3.16 | |
| LP11070SF | 11x7 | Slow_Flyer | $3.16 | |
| LP12038SF | 12x3.8SF | Slow_Flyer | $3.95 | |
| LP12060SF | 12x6SF | Slow_Flyer | $3.95 | |
| LP12080SF | 12x8SF | Slow_Flyer | $3.95 | |
| LP04141 | 4.1x4.1 | Speed 400 Electric | $2.13 | |
| LP04541 | 4.5x4.1 | Speed 400 Electric | $2.13 | |
| LP04745C | 4.75x4.5C | Speed 400 Electric | Carbon Fiber | $10.00 |
| LP04747C | 4.75x4.75C | Speed 400 Electric | Carbon Fiber | $10.00 |
| LP04742 | 4.7x4.2 | Speed 400 Electric | $2.13 | |
| LP053475 | 5.25x4.75 | Speed 400 Electric | $2.13 | |
| LP05545 | 5.5x4.5 | Speed 400 Electric | $2.13 | |
| LP05050 | 5x5 | Speed 400 Electric | $2.13 | |
| LP06040E | 6x4E | Speed 400 Electric | $2.13 | |
| LP04747 | 4.75x4.75 | Speed 400 Electric | $2.13 | |
| LP05545EP | 5.5x4.5EP | Speed 400 Electric | Pusher | $3.19 |
| LP06040EP | 6x4EP | Speed 400 Electric | Pusher | $3.19 |
| LP04220 | 4.2X2 | Sport | $1.83 | |
| LP06030 | 6x3 | Sport | $1.83 | |
| LP06040 | 6X4 | Sport | $1.83 | |
| LP07010 | 7X10 | Sport | $1.83 | |
| LP07050 | 7X5 | Sport | $1.83 | |
| LP07060 | 7X6 | Sport | $1.83 | |
| LP07070 | 7X7 | Sport | $1.83 | |
| LP07080 | 7X8 | Sport | $1.83 | |
| LP07090 | 7X9 | Sport | $1.83 | |
| LP08010 | 8X10 | Sport | $2.06 | |
| LP08050 | 8X5 | Sport | $2.06 | |
| LP08070 | 8X7 | Sport | $2.06 | |
| LP08080 | 8X8 | Sport | $2.06 | |
| LP08090 | 8X9 | Sport | $2.06 | |
| LP09560 | 9.5X6 | Sport | $2.46 | |
| LP09010 | 9X10 | Sport | $2.29 | |
| LP09060 | 9X6 | Sport | $2.29 | |
| LP0906P | 9X6P | Sport | Pusher | $4.54 |
| LP09070 | 9X7 | Sport | $2.29 | |
| LP09080 | 9X8 | Sport | $2.29 | |
| LP09090 | 9X9 | Sport | $2.29 | |
| LP10560 | 10.5X6 | Sport |
